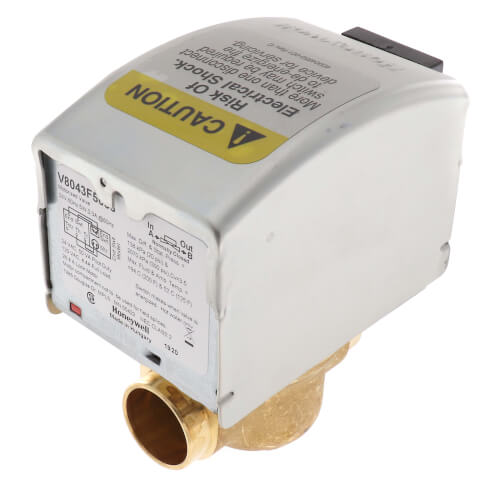

- 24V 3/4 in. Sweat Connection Low Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type : Sweat
- Pipe Size: 3/4”
- Body Pattern: Two-way, Straight-through
- Capacity: 3.5Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 20 psi
- Fluid Temperature Range: 200 F Max.
- Electrical Connections: screw terminal block
- Power Consumption: 7.2 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4-3/8 in. high x 3-1/2 in. wide x 2-3/8 in. deep
- Auxiliary End Switch: SPST
- End Switch Rating: 50 VA pilot duty @ 24 V
- Type: 2 position
- Static Pressure: 300 psi
- Voltage: 24v
- Frequency: 60 Hz
- Manual Opener: Yes
